STEDI LIGHT BAR MOUNTING BRACKET - LED FITS RHINO RACK PLATFORM - BRKRHINO-RACK

STEDI might be a little partial, but we believe that this is the market's most stylish Rhino-Rack LED Light Bar mounting option. STEDI created this product, especially for the Rhino-Rack Pioneer Platform. This is a complete bolt-on solution that covers a very broad range of light bar applications.

Both the current and previous versions of the STEDI Rhino-Rack LED Light Bar mounting bracket are compatible with the Rhino platform. We carefully considered the bracket geometry to fit every application, whether you have the four or five-plank option.

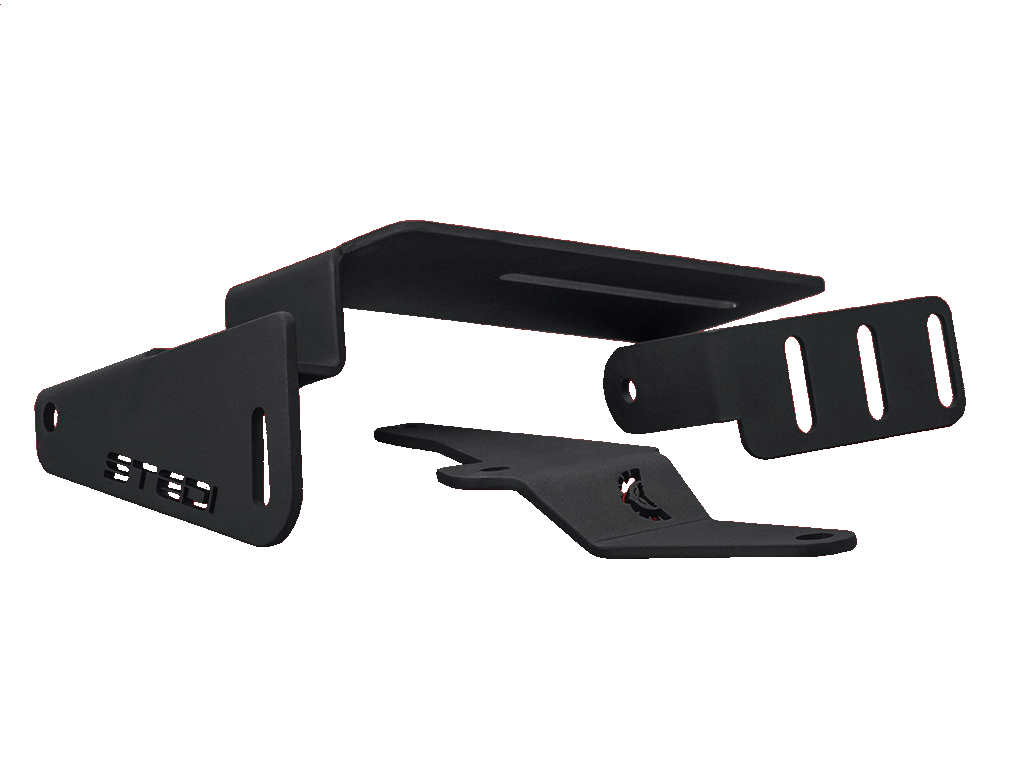

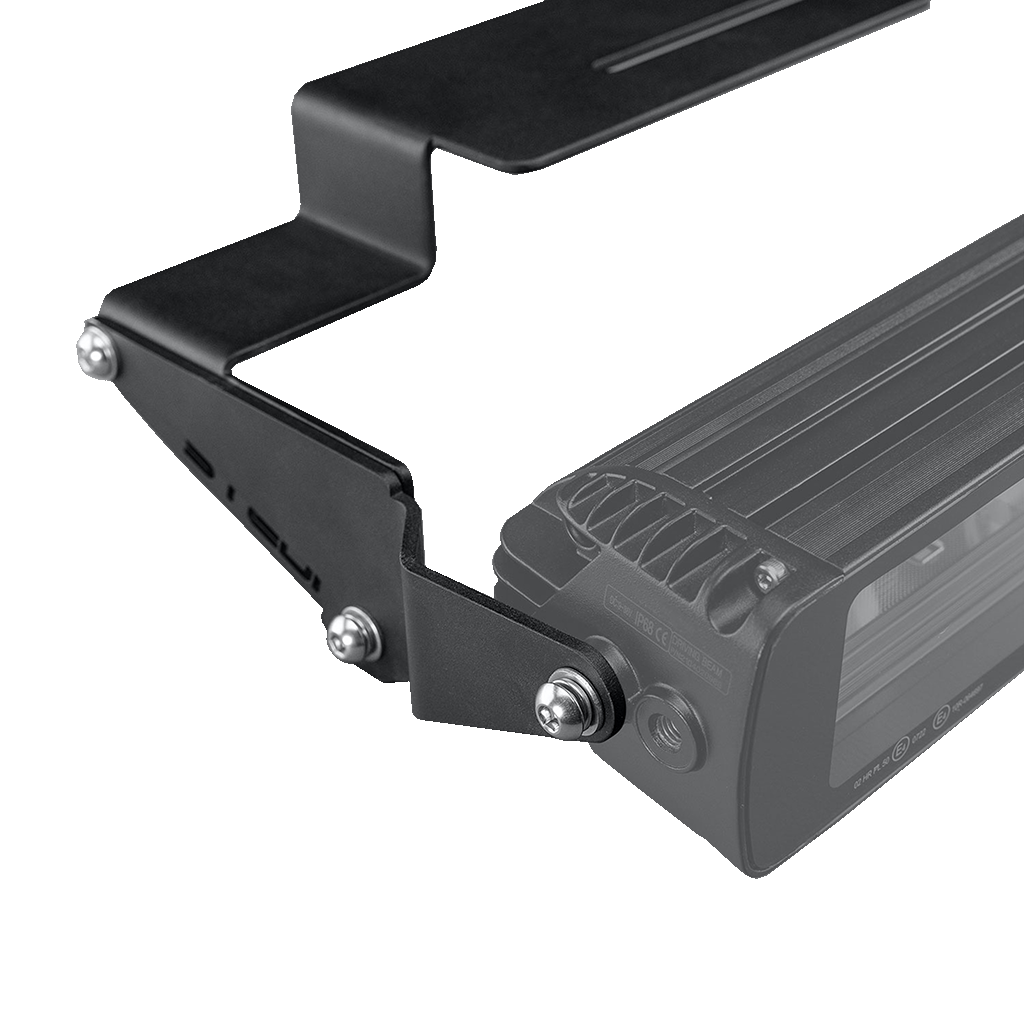

The mounting bracket for STEDI Rhino-Rack LED Light Bars perfectly embodies STEDI's design aesthetic. The bracket's two-piece construction enables you to attach your light bar either directly below or in front of the platform.

Features

• No drilling required, completely reversible
• Designed to accommodate light bars up to 43"
• 4mm stainless steel
• Designed to suit OEM aesthetics



Suits the following Rhino-Rack

• Pioneer Platform 4 & 5 plank
• Pioneer Tray 4 & 5 plank
• Pioneer Tradie 4 & 5 plank



What's included

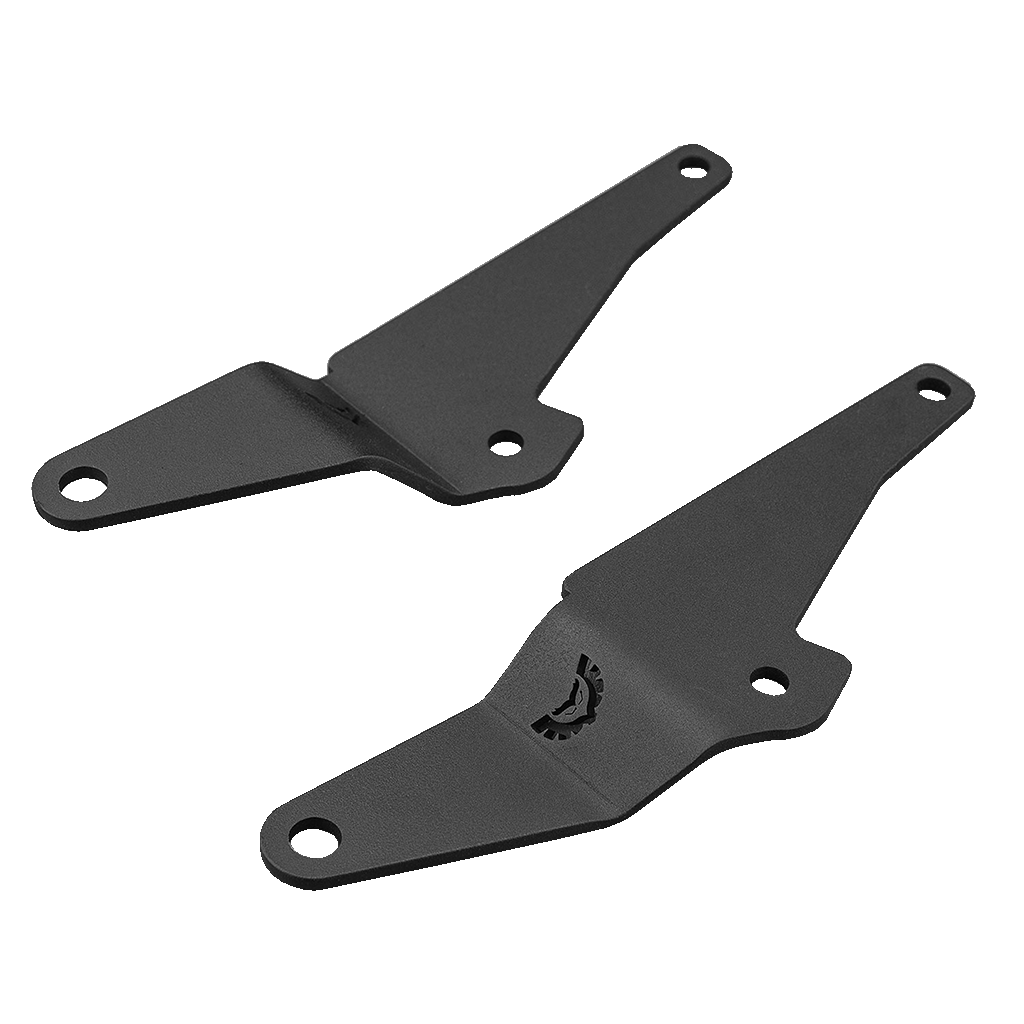

• 1 x LH Under Mount LED Bar Bracket to suit Rhino-Rack
• 1 x RH Under Mount LED Bar Bracket to suit Rhino-Rack
• 1 x Set of Front mount Light Bar addon plates
• 4 x M8x18mm button head bolt
• 10 x M8 flat washer
• 2 x M8 spring washer
• 4 x Nylon nuts

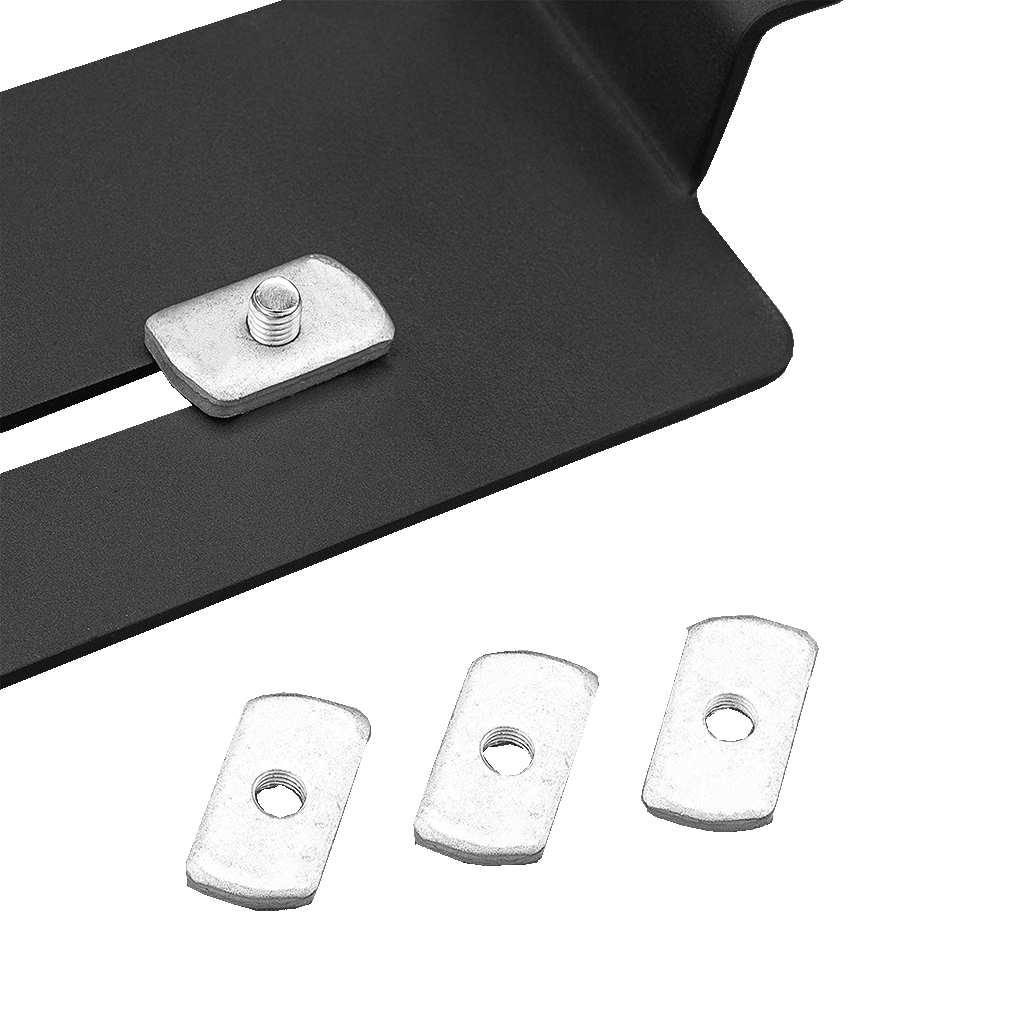

• 2 x M8 Channel nuts
• 2 x M8x20mm pan head bolt



Specifications

Product Code: BRKROOF-RNGRWLDTRK
Item: STEDI LED Light Bar Mounting Bracket for Rhino-Rack
Material: 4mm Stainless Steel
Finish: Textured UV Stable Powder Coat
Fits (Outer Planks): 917mm to 1092mm (36" to 43")
Fits (Inner Planks): 453mm to 577mm (17.8" to 22.7")
Light Bar Compatibility: ST3K-40L, ST2K-16L, ST4K-80L, ST3301-26L
Suits: 4 Plank Rhino Rack Platforms



*LED Light Bar and LED Lights NOT included*
