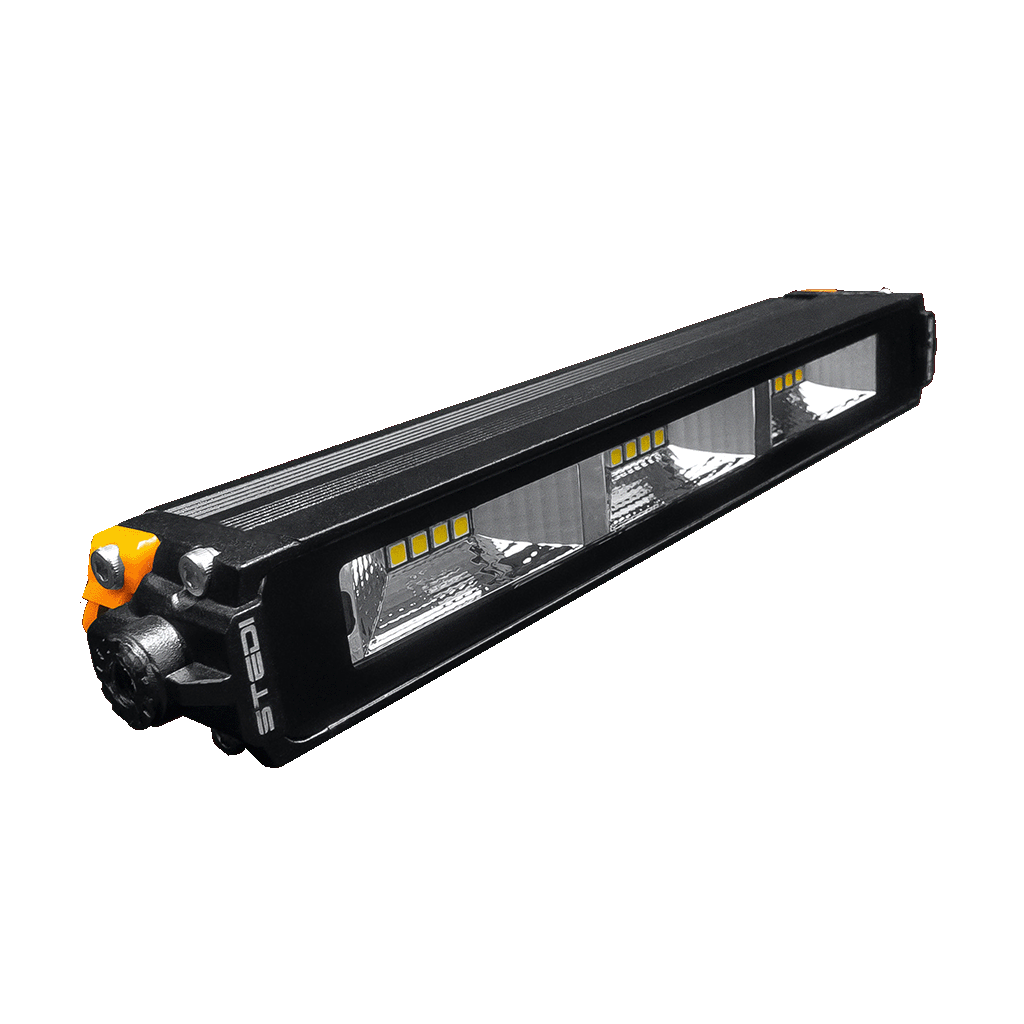

STEDI LIGHT BAR FLOOD - 18W SLIM LED 7 INCH - LED3520-7-18W

With a total height of just 26mm, STEDI's lowest-profile LED light bar is ideal for individuals who want a combination beam but are limited on space or want to retain their vehicle's factory appearance. STEDI's ST3520 Micro, which is available in 3 sizes to suit any application, is the obvious choice when seeking a little extra light.

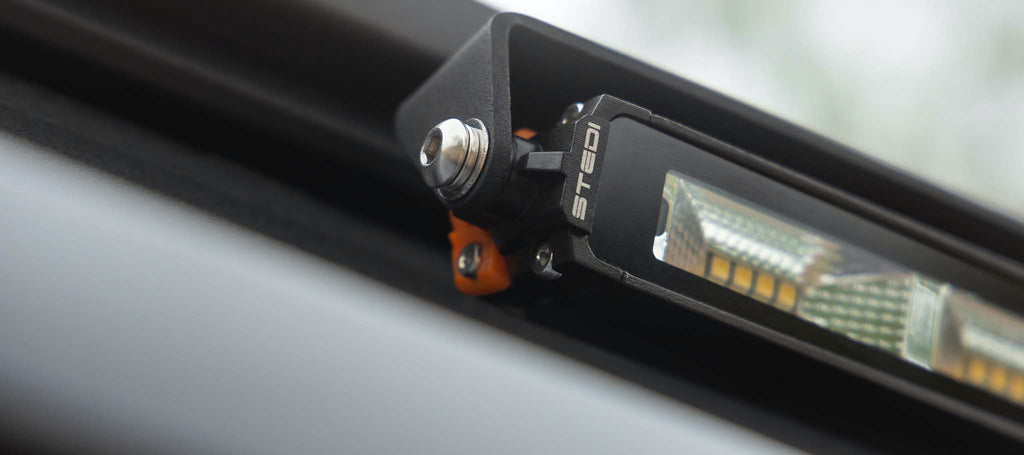

These little beauties, which weigh only 300g for the 7.4inch bar, offer one of the broadest ranges of usable applications because they are quite nimble and lightweight, allowing them to be mounted pretty much anyplace you need without being significantly supported by the structure of your 4WD



Features

• IP67 Ingress Protection
• 6 x 3 Watt CREE LED
• Micro Profile at only 26mm Flood Beam is ideal for bumper or bull bar voids, awning lights, and rear lights.

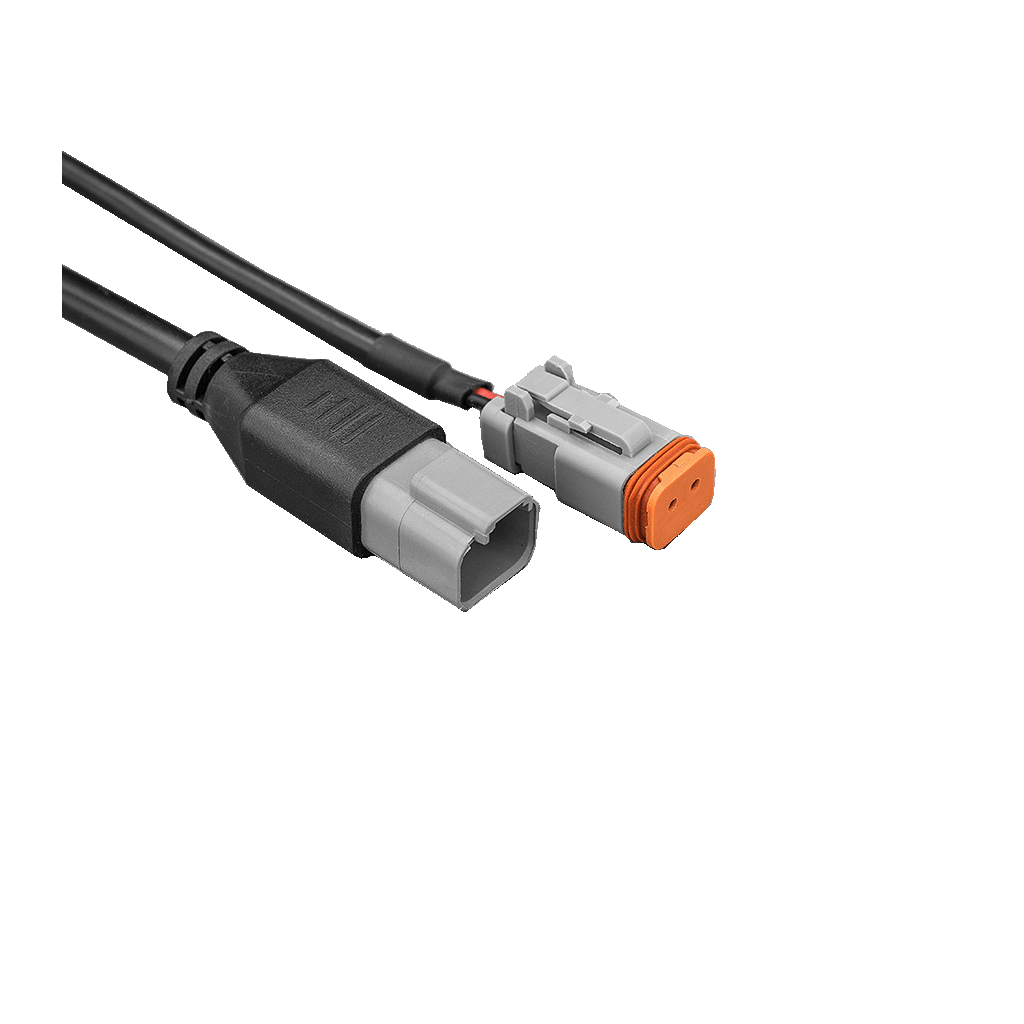

• Deutsch Connectors Male and Female with Wire Tails, Waterproof



Specifications

• Operating Voltage DC - 10-28V
• Power Consumption - 12W
• AMP Draw - 1.3A@12V/0.65A@24V
• Colour Temperature - 5700K
• LED - 12 x OSRAM GW PSLR 32. PM DRUISS
• Effective Lumen - 1400lm

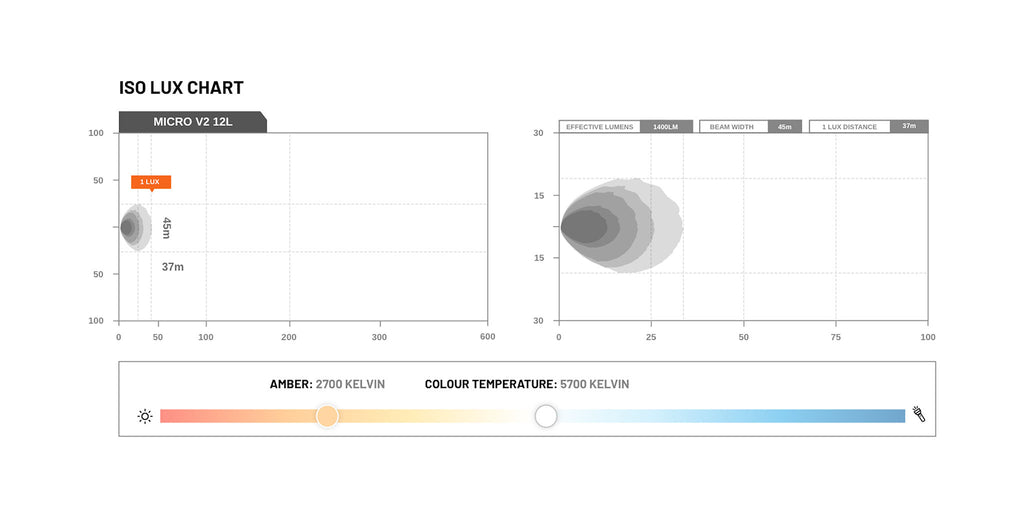

• Beam Angle Height - 30° Width: 120°
• Environment Temp - -40° to 60°C
• IP Rating - IP68
• LENS - Polycarbonate with Surface Hardening

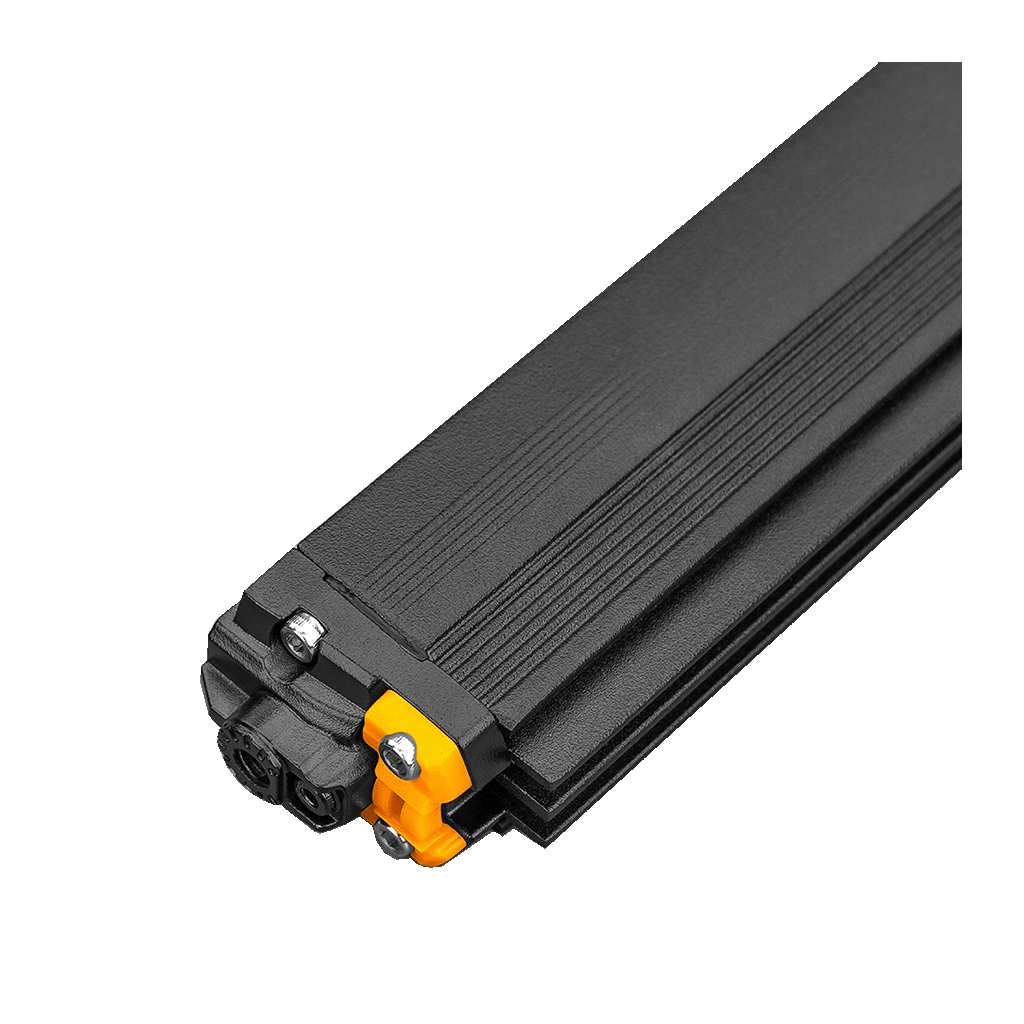

• Frame/Housing - Extruded Aluminium
• DT Connector - Included

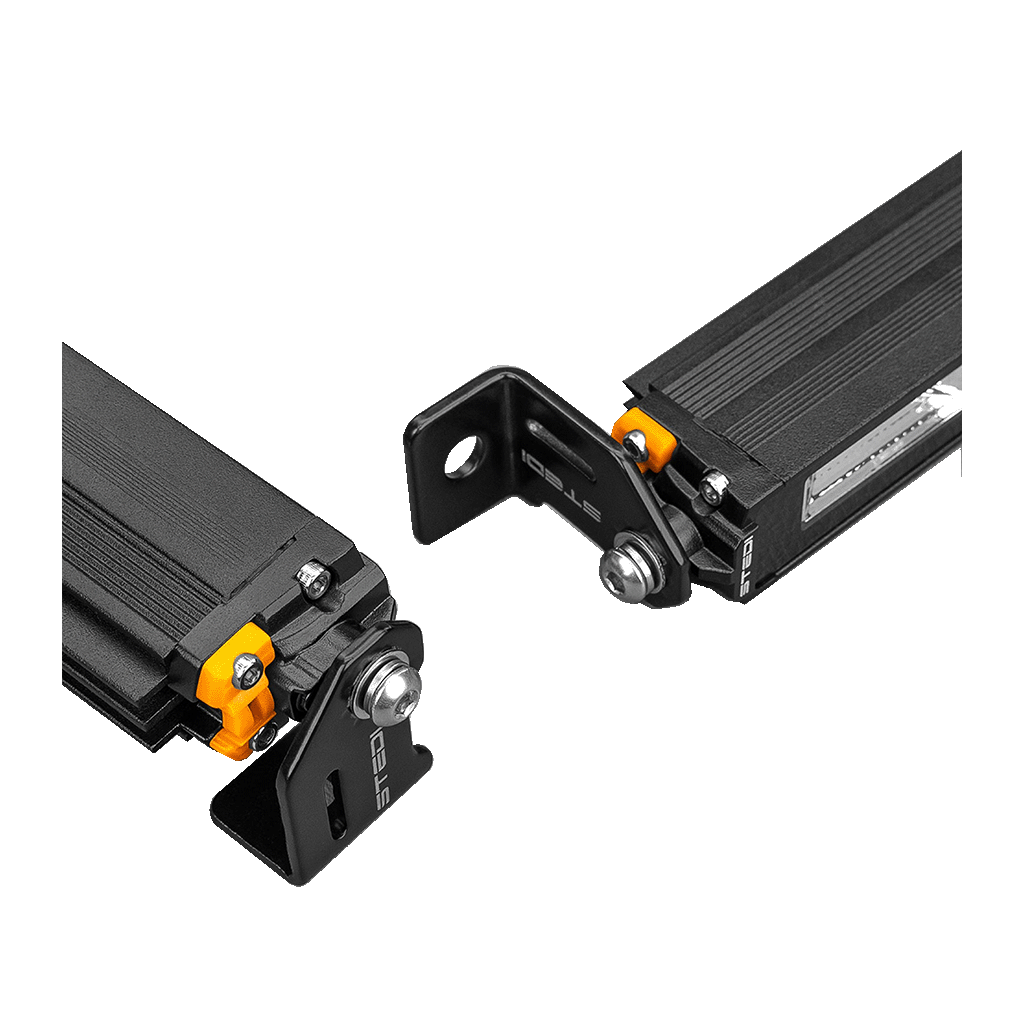

• Mounting Bracket - 304# Stainless Steel
• Lifetime - 30,000hrs

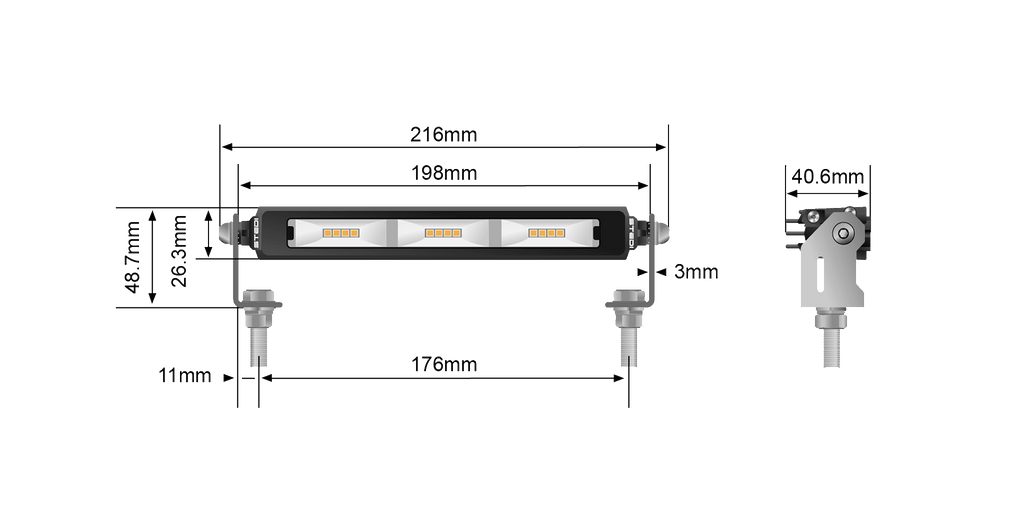

Dimensions

• SIZE (mm) 197.8 x 25.9 x 40.6
• Weight 0.3kg
• Cable Length 400mm



STEDI High-Performance LED Lights and Accessories for 4WDs
STEDI, headquartered in Victoria, is committed to being the global leader in high-performance auxiliary LED lighting solutions. STEDI driving lights and LED light bars are among their best-selling 4x4 brands for hardcore off-road use.

STEDI has long been associated with cutting-edge design. The brand has raised the bar again with its all-new edge-to-edge bonded lens design. STEDI is dedicated to inventing and manufacturing the best-LED lighting solutions on the market at affordable prices and 4WD247 makes this all possible by bringing STEDI’s products straight to you.
