AXIS 6.8" CARPLAY MECHLESS WITH HEAVY DUTY CAMERA VALUE PACK - AX1870PACK

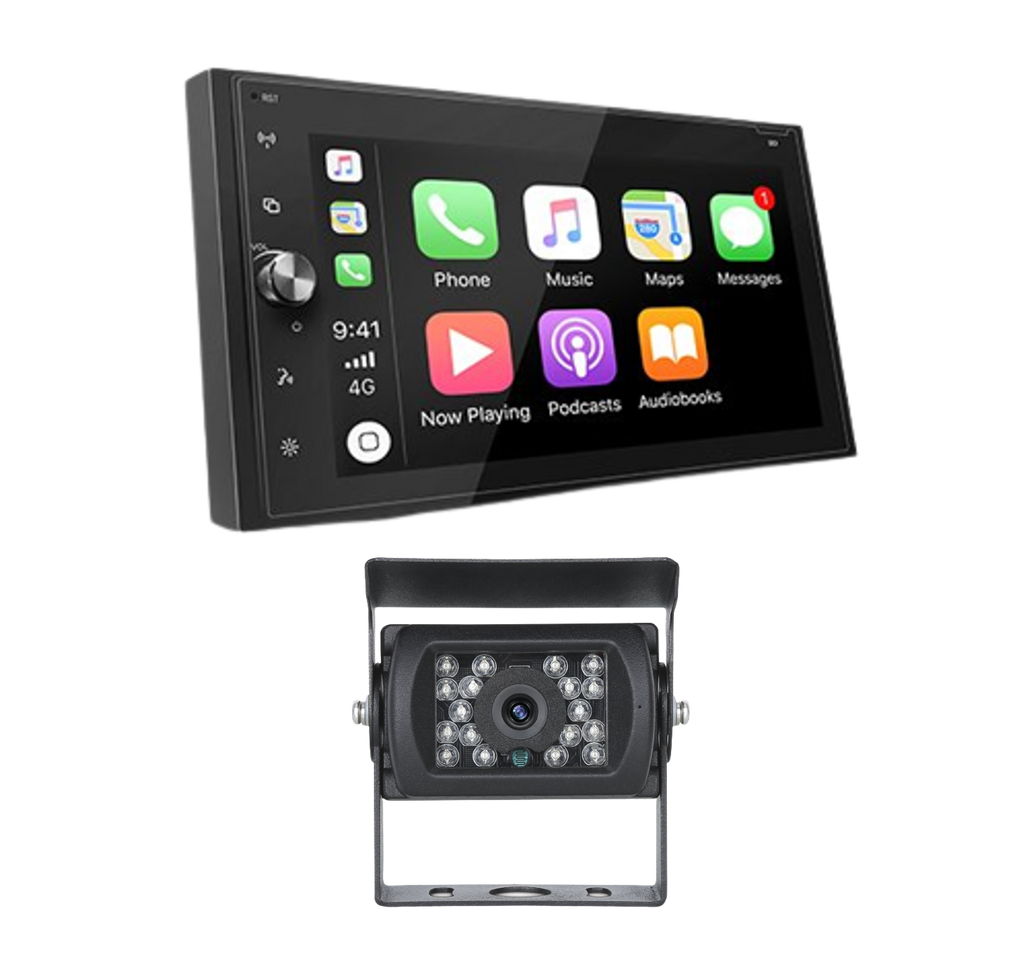

Looking to upgrade your factory head unit, want a heavy-duty reverse camera to make reversing the caravan or trailer easier? We've bundled together an AXIS AX1870CP and AXIS CC08 heavy-duty reverse camera kit to upgrade your factory head unit to something more modern and sleek.



The AX1870CP's cutting-edge OEM design makes it the ideal update for your 4WDs multimedia system. For safe, hands-free operations, the huge 6.8" LCD display supports a variety of media formats, including USB, SD, and Apple CarPlay compatibility. Take advantage of a wide range of feature-rich entertainment alternatives for the ideal on-the-go experience.



GENERAL

6.8” Capacitive Touchscreen LCD (800 x 480)
Linux OS
Ultra Memory
Steering Wheel Control (Programmable)
Digital Clock
ISO 2-DIN Mounting
Speaker Impedance 4-8ohm
9.5 – 16 DC Voltage
-30° to +70°C Operating Temp
170.5W x 98Hmm Face Panel
178W x 100mm Overall

TUNER

PLL Synthesized AM/FM
ELITE RDS AM/FM Tuner
FM 87.5-108MHz; AM522-1710KHz
30 Presets (18 FM/12 AM)

MULTIMEDIA

Works with Apple CarPlay (Via USB) For iOS Devices
2 x Rear USB 2.0 Input (2A Charging)
1 x Front SD Input
1 x A/V RCA Input
1 x Camera Input
Audio Formats: MP3, WMA, APE, OGG
Video Formats: AVI, MKV, FLV, ASF, MP4, MOV, 3PGS, M4A, MPEG, MPG
Image Formats: JPEG, BMP, GIF, PNG, JPEG

AUDIO

4 x 45W Max Power
4 x 26W RMS (1 kHz 10% THD)
4 x 18.5W RMS (1 kHz 0% THD)
8 x EQ Presets
1 x Custom Audio: 8 Band EQ
8 x Surround Sound Presets
Loud/Mute
2 x RCA Pre-out
1 x Sub RCA Pre-out

BLUETOOTH

A2DP Audio Streaming
Hands-Free Phone
Phonebook & Search
Call History
External Microphone

NAVIGATION

Via CarPlay

INCLUDES

ISO Wiring Harness
Wiring Leads
Surround Frame
External HF Mic
2 Year Warranty

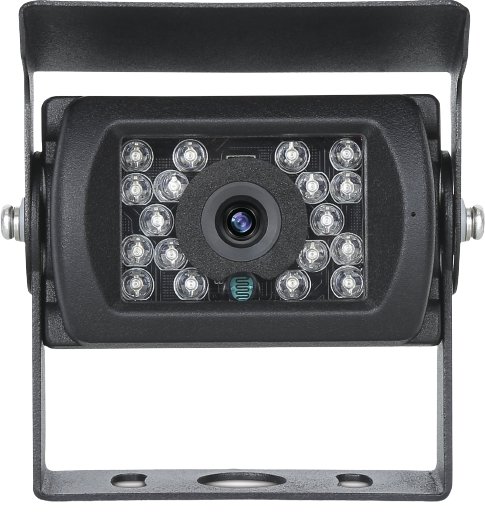

AXIS CC08

The heavy-duty waterproof AXIS CC08 camera provides drivers with a good view of the reversing area and peace of mind. It attaches simply to Axis LCD monitors via the provided 15m 4pin cable. At great addition to any 4WD.



Features

Image Sensor: 1/3” Sony CCD
Auto Lens: f2.9mm
Electronic Shutter: Auto
Diagonal Viewing Angle: 120°
Horizontal Viewing Angle: 90°
Signal System: PAL
Resolution: 700 TV Lines
Sync System: Internal
Orientation: Mirror Image
Night Vision: Yes, 18 LED
Illumination: 0 Lux with IR on
Ingress Protection: IP69K
Microphone: Yes
Operating Temperature: -20°C ~ 70°C
Dimensions: 70W x 45H x 60D mm (Excl Bracket)
Connection: Terminated 4-Pin Male
Power Supply: 12V DC (From Monitor)

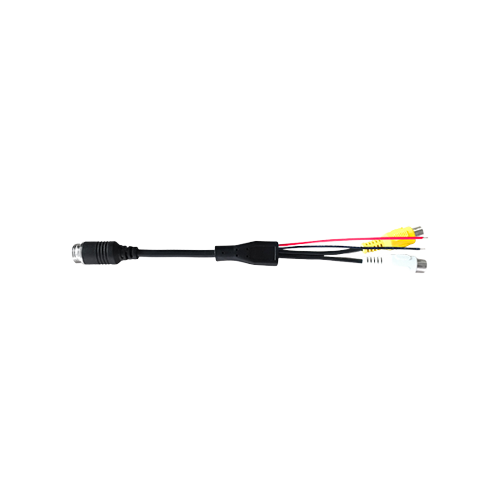

Extension Cable: 15m 4 Pin Male to 4 Pin Female


The History of Axis Car Audio
Since 1996, Axis Car Audio has served the automotive entertainment market by delivering great sound. Their mobile entertainment lineup is the ideal blend of exceptional performance, superior engineering quality, and affordability. Axis products have won numerous awards and have established the standard for amplifiers, subwoofers, and multimedia head units. Axis also specialises in entertainment and antenna systems suitable for 4x4 travel and staying safely linked to the outside world.

Moreover, the brand focuses on innovation in automotive and maritime product solutions spanning various areas, including vehicle entertainment, safety, and communications; Axis has the comprehensive answer for cars, caravans, RVs, boats, trucks, machinery, and commercial vehicles, ranging from truck and all-terrain audio systems to complete reversing safety.

Axis’ car audio and accessories will take your 4WD expedition to the next level. Browse 4WD247 today to buy and discover other Axis quality items and accessories for your next adventure!
